Series
HILMA.NC

Vice system HILMA.NC

clamping against the fixed jaw
jaw widths 100 | 125 | 160 mm
Vice system HILMA.NC
Downloads
Catalogue sheet
DEENFR
Operating instructions
Information Series



Further information
HILMA.NC - www.stark-roemheld.com/hilma-nc

Description

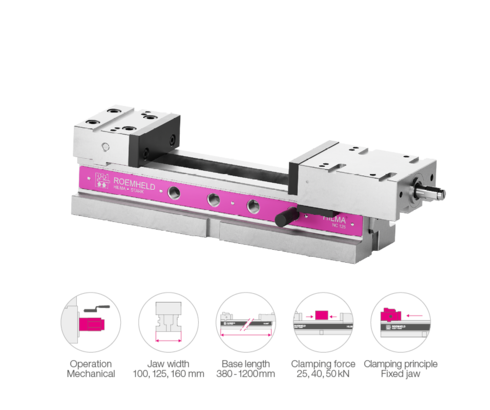

HILMA.NC machine vise

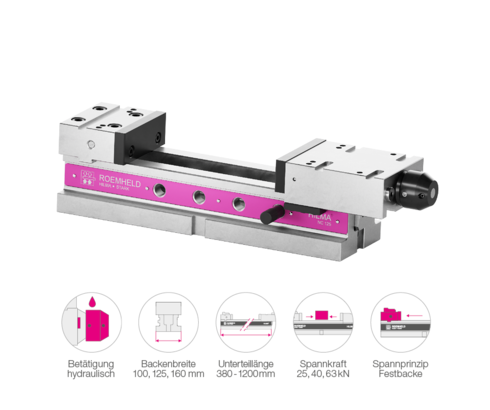

mechanically/hydraulically operated
clamping against the fixed jaw

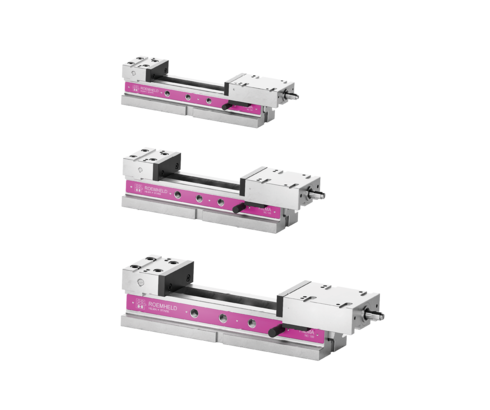

jaw width 100, 125, 160 mm

The modular system of the HILMA.NC series is preferably used on vertical machining centres. Depending on the machining strategy and degree of automation, the clamping force can be applied manually by means of a crank handle (HILMA.NC) or hydraulically by means of a power unit (HILMA.NCH).

Special features of the HILMA.NC machine vise family:

  • adapted: three jaw widths and variable base lengths
  • modular: extensive range of jaws and accessories
  • fixed: optimal possibilities for fixation
  • safe: precise and constant clamping force
  • clean: easy cleaning
The variable basis - modular HILMA.NC machine vise
Error loading CAD data. Please check your internet connection and try again.
Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
