Series
B1.8251

Hinge clamps

with metallic wiper edge and optional position monitoring
double acting, max. operating pressure 250 bar
Hinge clamps
Downloads
Catalogue sheet
Operating instructions
Request product
Check Pricing and Availability
Go to Carrlane.com
Description
B 1.8251 Hinge clamp

with metallic wiper edge and optional position monitoring,
double acting, max. operating pressure 250 bar

The hinge clamp is a low-cost hydraulic clamping element with many installation and connecting possibilities. If the clamping lever is completely retracted, unimpeded loading and unloading of the fixture can be effected.
A clamping recess in the workpiece a little bit wider than the clamping lever is sufficient as clamping surface. The special kinematics allow clamping nearly without side loads of workpieces which are very sensitive against deformation.

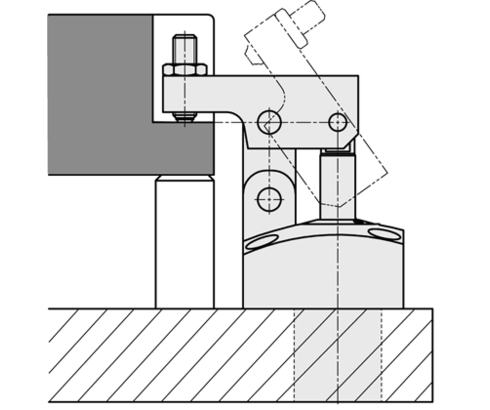

When pressurising the element, the piston moves upwards and swivels the clamping lever over the hinges forwards and at the same time downwards onto the workpiece. The piston force is deviated by 180° and is available as clamping force with virtually no loss of efficiency.
If the level of the clamping surface is exactly in the centre of the clamping range, no side loads are introduced into the workpiece.

The bodies are recessible in the fixture up to the flange. Alternatively intermediate plates are available for height adjustment.
All versions are optionally available with extended piston rod and with inductive or pneumatic position monitoring.

Accessories (24)
10
  • 10
  • 25
  • 50
Item no. CAD data Description
Item no.
CAD data
Description
Position monitoring, pneumatic series 1 for 1825-1XXP as per data sheet B1.8251
Item no.
CAD data
Description
Position monitoring, inductive series 1 for 1825-1XXE as per data sheet B1.8251
Item no.
CAD data
Description
Position monitoring, pneumatic series 2 for 1825-2XXP as per data sheet B1.8251
Item no.
CAD data
Description
Position monitoring, inductive series 2 for 1825-2XXE as per data sheet B1.8251
Item no.
CAD data
Description
Position monitoring, pneumatic series 3 for 1825-3XXP as per data sheet B1.8251
Item no.
CAD data
Description
Position monitoring, inductive series 3 for 1825-3XXE as per data sheet B1.8251
Item no.
CAD data
Description
Position monitoring, pneumatic series 4 for 1825-4XXP as per data sheet B1.8251
Item no.
CAD data
Description
Position monitoring, inductive series 4 for 1825-4XXE as per data sheet B1.8251
Item no.
CAD data
Description
Sealing plug G1/8 with thread sealing ring with hexagon socket SW4 max. 500 bar, as per data sheet F9.300
Item no.
CAD data
Description
Sealing plug G1/4 with thread sealing ring with hexagon socket SW6 max. 500 bar, as per data sheet F9.300
