6.2276

Clamping Nuts, Hydro-Mechanical

with through-hole thread and clamping force display
Clamping Nuts, Hydro-Mechanical
Downloads
Catalogue sheet
USESFRPL
Operating instructions
Information Series
Description

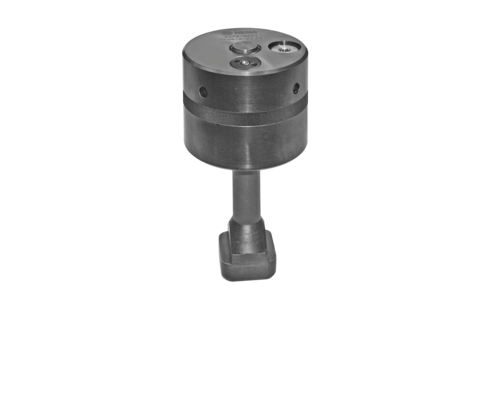

6.2276 Clamping Nuts, Hydro-Mechanical

Following manual positioning of the clamping nut against the clamping edge, the integral hydraulic cushion is preloaded by turning the hexagon socket. A low torque is transmitted to a high clamping force.
The clamping force indicator pin projects when the clamping force is reached.

Video
Accessories (15)
10
  • 10
  • 25
  • 50
Item no. CAD data Description
Item no.
2753140
CAD data
/
Description
Bracket with spacer bar for T-slot 14 mm *as per catalogue sheet WZ 3.2130
Item no.
2753180
CAD data
/
Description
Bracket with spacer bar for T-slot 18 mm *as per catalogue sheet WZ 3.2130
Item no.
2753220
CAD data
Description
Bracket to accommodate a spring clamping cylinder without spacer bar for T-slot 22 mm *as per catalogue sheet WZ 3.1403
Item no.
2753280
CAD data
Description
Bracket to accommodate a spring clamping cylinder without spacer bar for T-slot 28 mm *as per catalogue sheet WZ 3.1403
Item no.
2753360
CAD data
/
Description
Bracket with spacer bar for T-slot 36 mm *as per catalogue sheet WZ 3.2130
Item no.
5700022
CAD data
/
Description
T-bolt for T-slot 18 mm M16 x 160 mm long *as per catalogue sheet WZ 3.2130
Item no.
5700023
CAD data
/
Description
T-bolt for T-slot 22 mm M20 x 200 mm long *as per catalogue sheet WZ 3.2130
Item no.
5700024
CAD data
/
Description
T-bolt for T-slot 28 mm M24 x 250 mm long *as per catalogue sheet WZ 3.2130
Item no.
5700048
CAD data
/
Description
T-bolt for T-slot 36 mm M30 x 250 mm long *as per catalogue sheet WZ 3.2130
Item no.
5700142
CAD data
/
Description
T-bolt for T-slot 14 mm M12 x 160 mm long *as per catalogue sheet WZ 6.2276
Error loading CAD data. Please check your internet connection and try again.
Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
