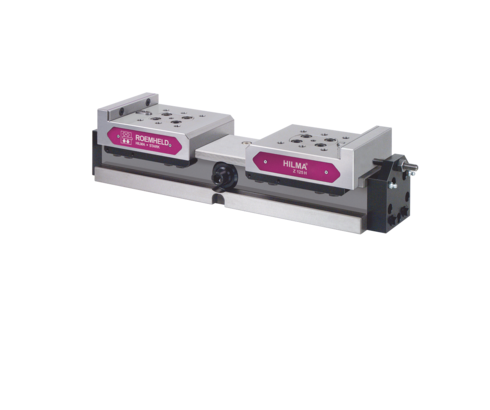

Mordaza de centraje HILMA.ZH
hydraulically operated
jaw widths 100, 125 and 160 mm
concentric clamping
hydraulically operated, double acting
Concentric vises position and clamp workpieces under the influence of the outer contours exactly in a given symmetry axis. They can be used on machining centres, machines tools and machines for end machining as well as within special clamping fixtures.
Hydraulic clamping and unclamping is made by an external pressure transducer with a double-acting circuit. The synchronisation control adjusted free of play guarantees a high centring precision.
Special benefits
- high repetitive clamping repeatability ± 0.02 mm
- constant lengths and large clamping ranges
- mounting position: any
- fixing and mounting possibilities for customer-specific clamping jaws
- protection against coolants and swarf by integrated wipers in the clamping slide
- large slide stroke
- opening stroke limitation by adjusting screw
- suitable for the connection to the central lubrication with bed way oil VG 68 (please ask for information)
Designs
jaw widths 100, 125, 160 mm
| Referencia | Datos CAD | tipo | accionamiento | fuerza máx. de sujeción [kN] | principio de sujeción | |
|---|---|---|---|---|---|---|
|
Referencia
|
Datos CAD
|
Propiedades
| ||||
|
Referencia
|
Propiedades
| |||||
|
Referencia
|
Propiedades
| |||||
|
Referencia
|
Propiedades
| |||||
|
Referencia
|
Propiedades
| |||||
|
Referencia
|
Propiedades
|
| Referencia | Datos CAD | Descripción |
|---|---|---|
|
Referencia
|
Descripción
Set of clamping claws (4 off)
for jaw width 100 mm
with socket head cap screws DIN 912 / M12x45 mm
clamping height 24 mm
as per data sheet WS1.300Z
|
|
|
Referencia
|
Descripción
Set of key blocks DIN 6323 (2 off)
for T-slot 14 mm h6
as per data sheet WS1.300Z
|
|
|
Referencia
|
Descripción
Set of key blocks DIN 6323 (2 off)
for T-slot 18 mm h6
as per data sheet WS1.300Z
|

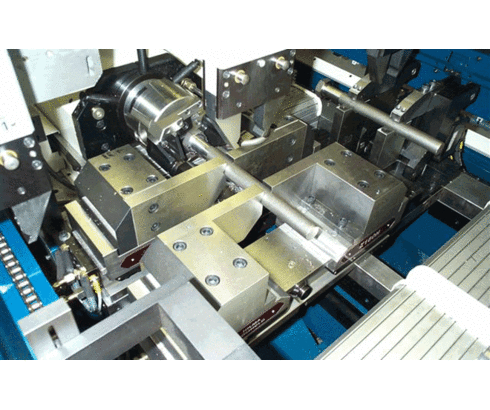

Two concentric vises "HILMA.Z 160 H" in automatic mode of machine for machining of ends. The next workpiece is ready (top right in the figure), it will be fed by the gripper (above the workpiece being machined), after the previous workpiece was placed to the left. Optimised clamping jaws allow the machining of different components without jaw change.
The fully automated plant is in unattended operation.

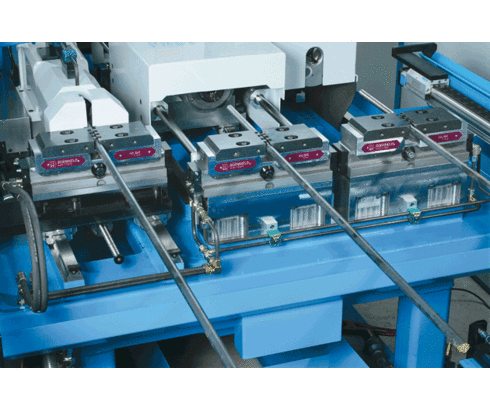

Three hydraulically-operated concentric vises "HILMA.Z 100 H" on a machine for machining of ends. The fully automated plant is in unattended operation. Workpiece-specific jaws clamp different diameters to the always same centre.
